Rondo Cromaster

รวมความเป็นเลิศของทุกฟังชั่นก์ภายในเครื่องที่มีขนาดกระทัดรัด ซึ่งสามารถผลิตครัวซังก์ได้มากถึง 24000 ชิ้นต่อชั่วโมง

  Call MK Unigroup

  email Us

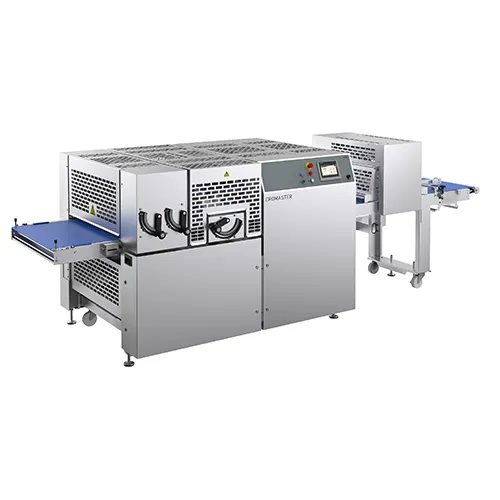

Cromaster combines top performance with a tiny footprint. Use it for highly process-reliable production at rates up to 24000 croissants per hour.

Specifications

Cromaster Standard configuration Integrated configuration Capacity Up tp 3000 unfilled croissant per row/hour, 2-8 rows Up to 2000 filled croissant per row/hour, 205 rows Triangle sizes - triangle base 45-220 mm - triangle height 65-265 mm - triangle base 45-220 mm - triangle height 65-265 mm Length - without filling depositor: 450 mm - with filling depositor: 5800 mm 3000 mm Width 1554 mm 1554 mm Table height 915 mm 915 mm Width of conveyor belt - infeed belt 640 mm - outfeed belt 850 mm - infeed belt 640 mm - outfeed belt 850 mm Speed of conveyor belt - Infeed belt 0.5-20m/min - outfeed belt 1-30 m/min - Infeed belt 0.5-20m/min - outfeed belt 1-30 m/min Rated power 6.5 kVA/5.2 kW 6.5 kVA/5.2 kW Supply voltage 3x200-480 V, 50/60 Hz 3x200-480 V, 50/60 Hz Control Voltage 24 V DC 24 V DC Air consumption (without/with filling depositor) 100/500 NL/min 100/500 NL/min Interfaces Calibrating, Smartline, Rondo MLC, Starline, topline, filling depositors, Rondosprayer, Compact panning Machine, Croissant panning macine Weight - Without filling depositor: 850 kg - with filling depositor: 950 kg 700 kg
