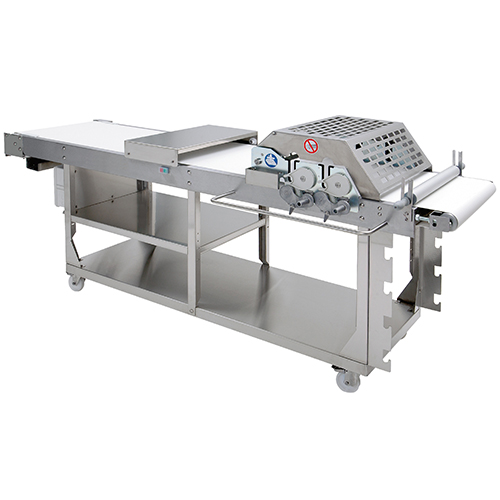

Rondo Cutting Table
The RONDO cutting table complement one another perfectly. Together, they form a versatile artisanal production line. On the cutting table, you cut the dough band into various shapes. At the same time, you can already be processing the next block of dough on the dough sheeter. That saves time and increases your productivity. Four time-saving steps 1. The dough is sheeted and reeled gently on the dough sheeter. 2. You place the dough band on the cutting table, where it is unreeled again. 3. The dough band is cut to the desired shape. 4. You fill and fold the pastries on the cutting table. Durable and stable the sturdy stainless-steel construction of the dough sheeters and cutting tables guarantees a long service life. You have a choice between cutting tables of 2.6m and 3.6m in length. They are also optionally available with variable speed.Call MK Unigroup
email Us
Specifications
Cutting tables Transfer tables SFT 262 SFT 262 V SFT 362 SFT 362 V PPT 150 PPT 250 Width of table 715 mm 715 mm 715 mm 715 mm 650 mm 650 mm Width of conveyor belt 640 mm 640 mm 640 mm 640 mm 640 mm 640 mm Max Width of machine 970 mm 970mm 970 mm 970 mm 850 mm 850 mm Table length overall 2650 mm 2650 mm 3550 mm 3550 mm 1660 mm 2530 mm Total length "3270 mm incl drawing" "3270 mm incl drawing" "4170 mm incl drawing" "4170 mm incl drawing" 1700 mm 2630 mm Height 915 mm 915 mm 915 mm 915 mm 805-1000 mm 805-1000 mm Speed of conveyor belt 3.6 m/min 0.8-7 m/min 3.6m/min 0.8-7m/min 0.9-55m/min 0.9-55m/min Rated power 1.1 kVA/0.7 kW 1.1 kVA/0.7 kW 1.1 kVA/0.7 kW 1.1 kVA/0.7 kW 1.1 kVA/0.7 kW 1.1 kVA/0.7 kW Supply voltage 3x200-420 V, 50/60 Hz "1x200-460V, 50/60 Hz 3x200-460 V, 50/60 Hz" 3x200-420 V, 50/60 Hz "1x200-460V, 50/60 Hz 3x200-460 V, 50/60 Hz" 1x200-460V, 50/60 Hz 1x200-460 V,50/60 Hz Second cutting station - - optional optional - - Driven cutting station - - optional optional - "Weight - with second cutting station - with driven cutting station" "170 kg - -" "170 kg - -" "190 kg 210 kg 215 kg" "190 kg 210 kg 215 kg" "65 kg - -" "80 kg - -
