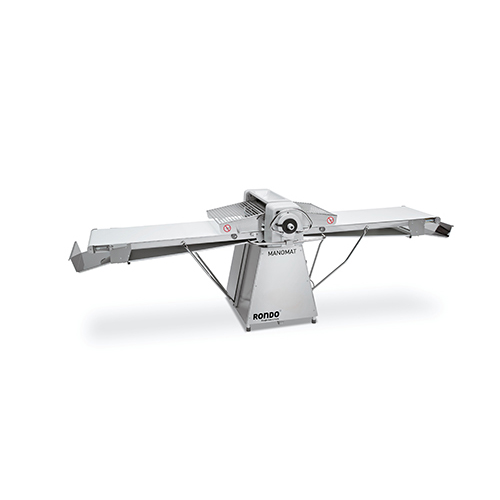

Rondo monomat

Manomat and Automat With the Monumat and Automat, you quickly process particularly large quantities of dough. You can also work effortlessly in multiple shifts. Numerous elaborate details ensure maximum operator convenience. The design is extremely rugged and smooth surfaces made of stainless steel make cleaning simple. Monomat – manual roller adjustment; on set the rolling steps manually Automat – automatic roller adjustment; you select one of four predefined sheeting curves. The automat then reduces the roller gap during sheeting automatically and therefore always sheets your blocks evenly, enabling you to achieve consistent high quality: - 4 automatic Programs - Manual operation - Exact final thickness, with the staggered scale, you can even set dough thicknesses below 2 mm with great precision: - Large, clearly legible scale - Simple and exact setting of the dough thickness - Easy and rapid opening and closing of the rollers with the ergonomic adjustment wheel - More products from the same quantity of dough Unique synchronous gear Dough bands have a tendency to make waves, to jam up or to tear. You can solve this using synchronous gear of the Monumat and Automat. Press the reversing lever further down: the synchronous gear engages and the feeding speed is adapted, enabling you to sheet even extremely thin dough bands easily and cleanly.

  Call MK Unigroup

  email Us


Specifications

Rondo Manomat and Automat

Manomat 2000
SSP 675 Manomat 2000 SSO 677 Automat 2000SSO 685 Automat 2000 SSO 687
Substructure A-frame In stainless steel In stainless steel In stainless steel In stainless steel
Automatic flour duster optional optional optional optional
Width of conveyor belts 640 mm 640 mm 640 mm 640 mm
Table length overall 2720 mm 3320 mm 2720 mm 3320 mm
Roller length 660 mm 660 mm 660 mm 660 mm
Roller gap 0.3-45 mm 0.3-45 mm 0.3-45 mm 0.3-45 mm
Roller gap reduction manual manual 4 programs/manual 4 programs/manual
Speed of discharge conveyor 60 cm/s 60 cm/s 60 cm/s 60 cm/s
Rated power 1.5 kVA/0.9 kW 1.5 kVA/ 0.9 kW 1.5 kVA/0.9kW 1.5 kVA/ 0.9 kW
Supply voltage 3x200-420 V, 50/60 Hz 3x200-420 V, 50/60 Hz 3x200-420 V, 50/60 Hz 3x200-420 V, 50/60 Hz
Required floor space (mm)
- in working position, catch pans extended
- in resting position
1215x3200 mm 1215x1440 mm 1215x3800 mm 1215x1760 mm 1215x3200mm 1215x14400mm 1215x3800mm 1215x1760mm
Weight 230 kg 235 kg 235 kg 240 kg
