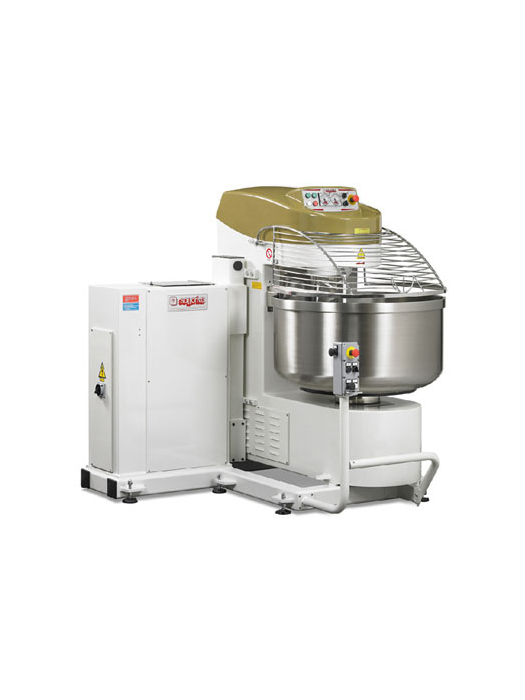

Sottoriva Prima Twist

 Self tilting spiral mixer from 130 to 300 kg. of dough The machine is composed of a TWIST spiral mixer and a PRISMA hydraulic tilting device for the pouring of dough onto a table or into an hopper - of a divider, for example - placed on the right or on the left hand side of the machine. The spiral mixer is available in a wide range of mixing capacities, from 130 to 300 kg. The structure is made of thick steel sheet. The spiral is in high resistance stainless steel; the bowl is in stainless steel too. The spiral rotation can be set at two different speeds, and the mixing times can be set by means of the two timers (one per speed) positioned on the control panel. The shift from low to high mixing speed and stopping of the machine at the end of the mixing are automatically carried out after the set times

  Call MK Unigroup

  email Us

TYPE
MIXER POWER
LIFT POWER
DOUGH kg.
MASS kg
SIZE mm
PRISMA 130/B
KW 2.06 - 4.7 - 0.66
KW 0,75
130
1030
1900x1850x2100
PRISMA 160/B
KW 3.7 - 5.9 - 0.75
KW 0,75
160
1200
1900x1850x2100
PRISMA 200/B
KW 3.7 - 5.9 - 0.75
KW 0,75
200
1290
1900x1850x2100
PRISMA 250/B
KW 3.7 - 7.75 - 0.75
KW 0,75
200
1405
1900x1850x2100
PRISMA 300/B
KW 3.7 - 7.75 - 0.75
KW 0,75
300
1420
1900x1850x2100
PRISMA 130
KW 2.06 - 4.7 - 0.66
KW 0,75
130
1175
1900x1850x2100
PRISMA 160
KW 3.7 - 5.9 - 0.75
KW 0,75
160
1430
1900x1850x2100
PRISMA 200
KW 3.7 - 5.9 - 0.75
KW 0,75
200
1520
1900x1850x2100
PRISMA 250
KW 3.7 - 7.75 - 0.75
KW 0,75
250
1653
1900x1850x2100
PRISMA 300
KW 3.7 - 7.75 - 0.75
KW 0,75
300
1640
1900x1850x2100
