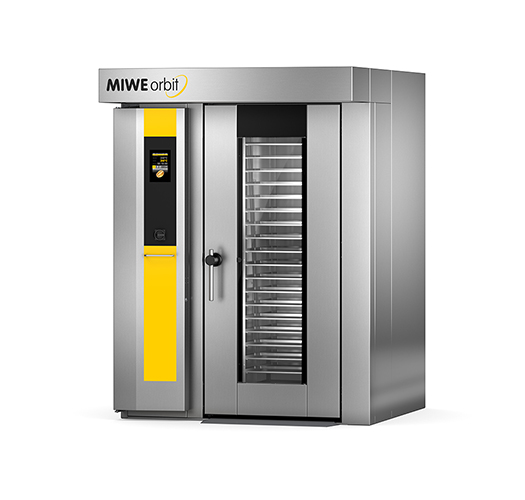

Miwe Orbit

 First class baking results With its quadruple-pass heating register made of heat resistant steel, a completely newly developed high-performance steam generator and its intelligent airflow, it delivers first-class baking results and beautiful sheen with optimum volumes right from the start. The door conveniently offers such a good view of the baking chamber that you won’t miss a thing when it comes to the MIWE orbit’s quality. Thanks to the ergonomically inclined control column, you always have the touch screen of the control and thus all processes firmly in view. Follows your system Two different systems have established themselves in the world of convection oven baking: the rotary plate version, in which the trolley is moved onto a platform, which turns during baking. And the lift variant, in which the trolley is inserted into a suspension device that lifts it and rotates it freely when baking. The MIWE orbit can do both and therefore allows you to remain true to your preferred system and continue to use your existing racks. The rotary plate variant is standard; the lift variant is optional Heavenly easy to use. The modern Touch Control MIWE TC with its large seven-inch display is easy and intuitive to use, even for untrained users. This applies to the standard MIWE classic user interface, and especially to the MIWE go! user interface (option), which has been adopted from the world of baking stations (and has won several awards) and which makes it even easier for untrained personnel to achieve the right result. Both variants support three operator modes: Easy mode with baking program support for the average user, Professional mode with baking program support for the expert master baker and Manual mode for the direct input of temperature, time and steam. That means that everyone gets what they want, including the right results. Especially since the MIWE orbit comes with 20 sample baking programs as standard

  Call MK Unigroup

  email Us

Specifications

OR 1.0608-S OR 1.0711-S
Exterior dimensions (WxDxH) cm 162 x 150 x 220 187 x 190 x 220
Rack trolley 1 1
Baking tray size 58 x 78 53 x 65
Baking area in m2 8.5 at 18 trays 12.4
Minimum room height in cm 262 301
Connected load in kW 65-75 kW / 222-256 k Btu/h 85-95 kW / 290-324 k Btu/h
Heating mode Oil / Gas / Electricity
Rotating plate/lift Turntable / A-, B-, C-lift
Control system MIWE TC (classic / go!)
